that I can see all the mistakes I made, it should be much easier to make the correct one
from steel. I did buy some 304 SS, but I don't have a drill press that will turn slow enough
on the bigger drills. I will probably just use some steel flat bar from Lowes.
To upgrade my fuel system. I started with the bracket and location of the pressure regulator.
I bought a tool 2 years ago and finally have a situation to use it. I used it for only one hole,
but where it really shines is precisely locating multiple hole at one time. It would be
impossible for the home shop to get all 5 holes located in a bracket, but with this tool it
should be NO problem.
https://www.amazon.com/gp/product/B00B4 ... UTF8&psc=1
https://www.amazon.com/gp/product/B00B4 ... UTF8&psc=1
Sure enough it screwed together in perfect alignment without any coaxing and without any
choice words. There would have been no way to measure accurately, I would have had to make
the 2 holes bigger than needed to make it align.
.
- FP01_BracketMockup01_00071.jpg (132.64 KiB) Viewed 527 times

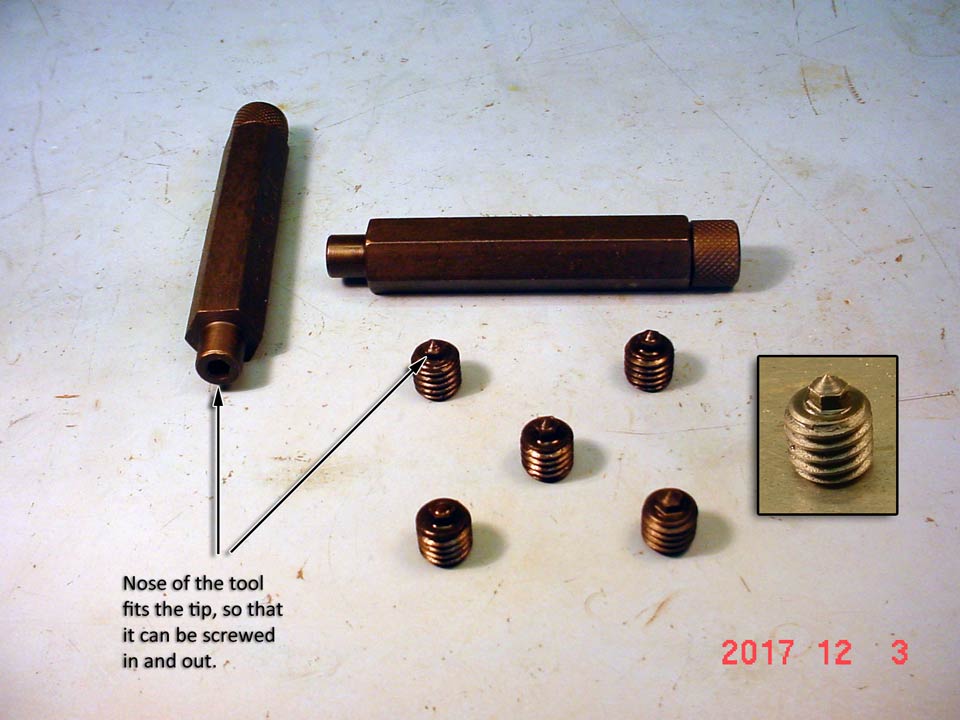

- FP01_TTC-7-Piece-Transfer-Screw_00072.jpg (72.14 KiB) Viewed 527 times

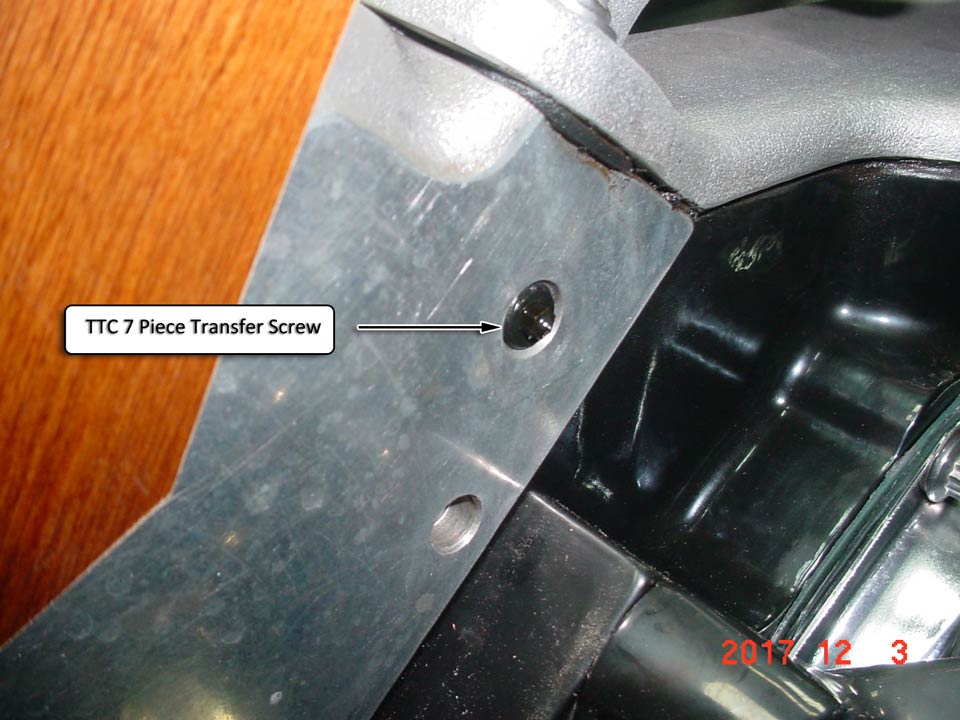

- FP01_TTC-7-Piece-Transfer-Screw_00075.jpg (82.71 KiB) Viewed 527 times

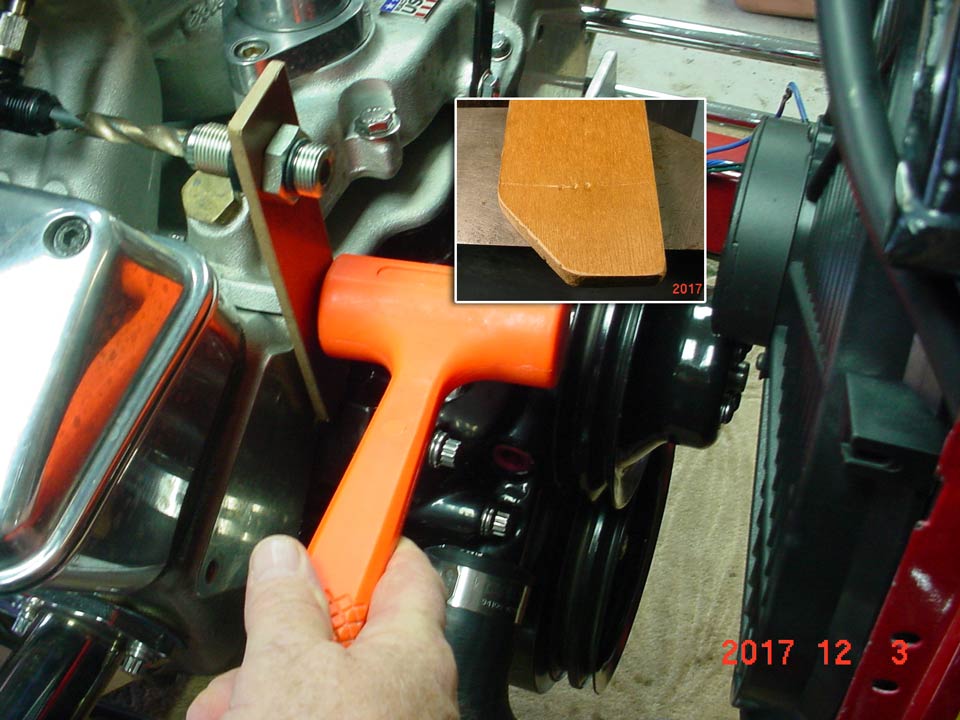

- FP01_ToolMarks_00079.jpg (91.12 KiB) Viewed 527 times

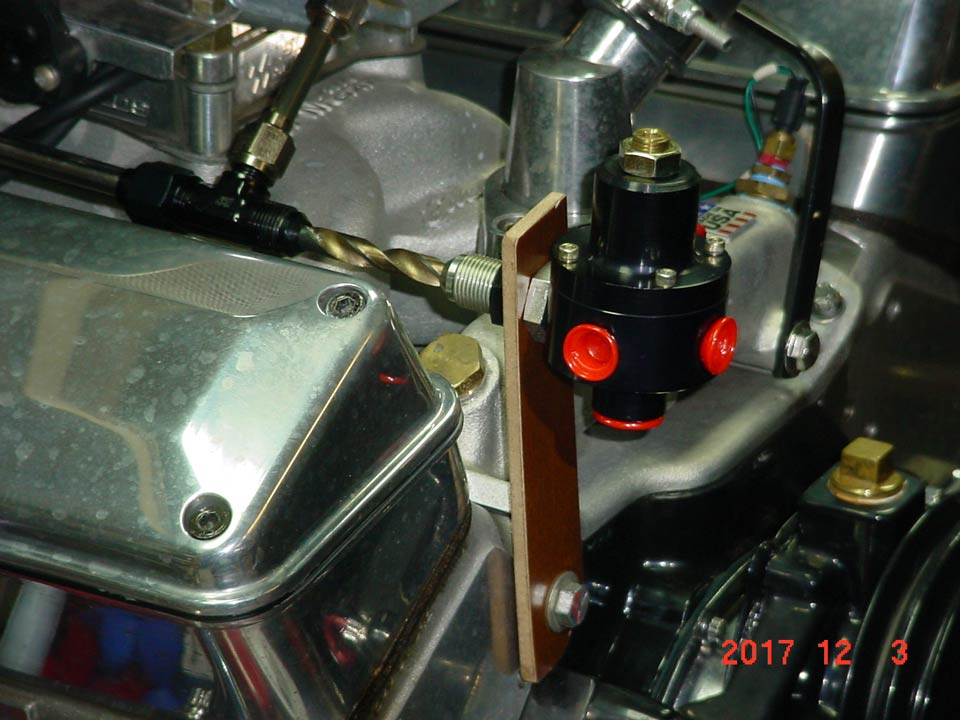

- FP01_FinishedPressureBracket_00084.jpg (84.88 KiB) Viewed 527 times
